CoreEdge Product

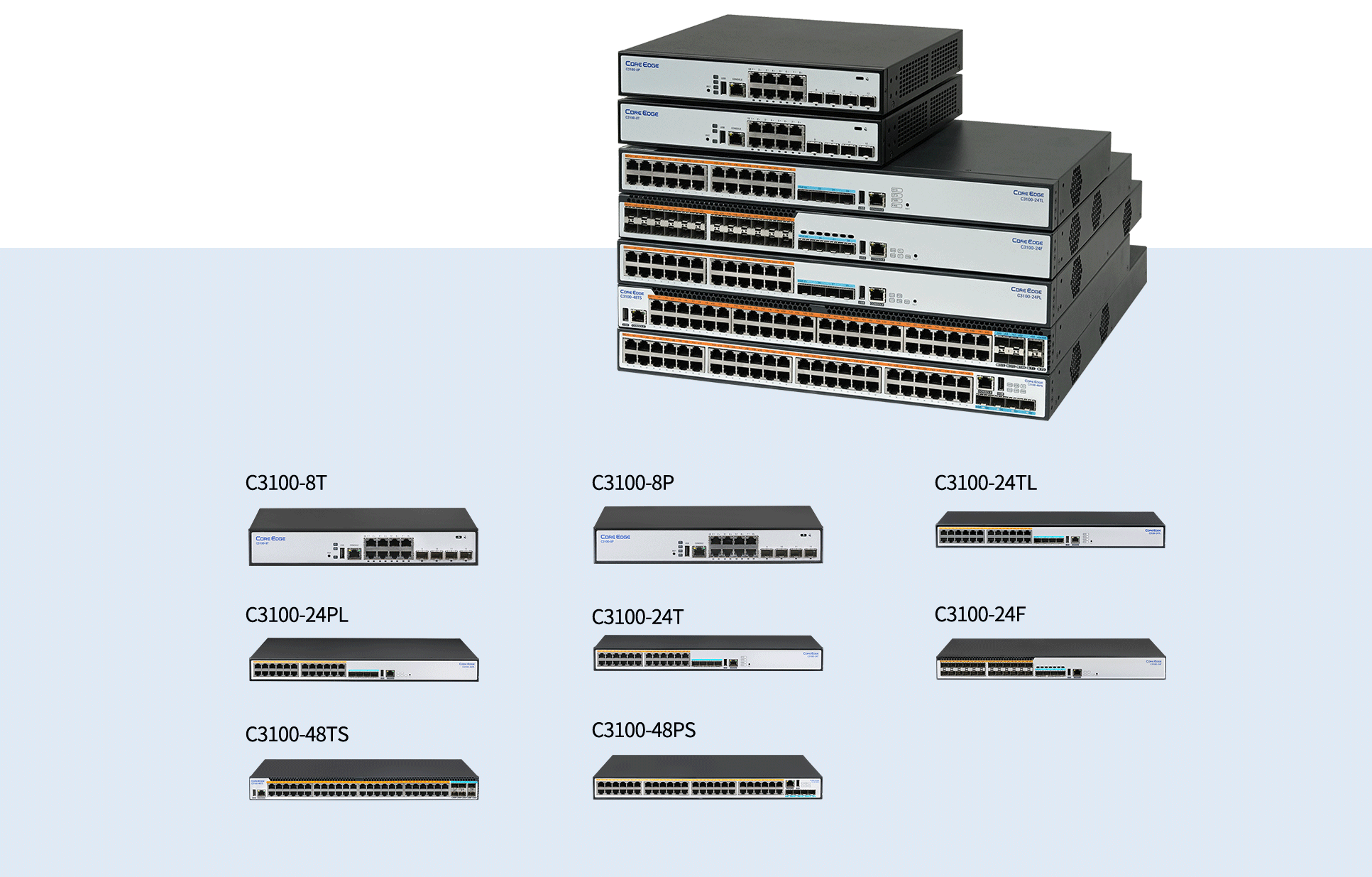

C3100

C3100 access switch supports static routing and virtual stacking features. C3100 switch supports more than 4 port 10G uplink.

ACCESS SWITCH

Various
configuration

  • Support standalone topology

  • Support virtual stacking

Reliability

  • Support looping prevention feature

  • Support firmware redundancy

Basic L3
features

  • Support static routing & RIP

  • Support VRRP

Scalability

  • Support 4~6ports 10G uplink

  • Support power redundancy (For some models)

Model

C3100-8T

C3100-8P

C3100-24TL

C3100-24PL

Interface

  • 10/100/1000
    Base-T ports

    8

    8

    24

    24

  • 10G Base-R
    Ports

    4

    4

    4

    4

  • Performance

  • Switching capacity

    96 Gbps

    96 Gbps

    128 Gbps

    128 Gbps

  • Forwarding rate

    71 Mpps

    71 Mpps

    95 Mpps

    95 Mpps

  • Max MAC
    address capacity

    16K

    16K

    16K

    16K

  • Active VLAN

    4K

    4K

    4K

    4K

  • Environment

  • Power supply

    1 power supply

  • PoE power budget

    -

    130W

    -

    370W

  • Operating Temperature Humidity

    0 ~ 50°C / 10 ~ 90% [non-condensing]

  • Dimension
    (WxDxH, mm)

    275 x 230 x 44

    275 x 230 x 44

    440 x 220 x 44

    440 x 380 x 44

Model

C3100-24T

C3100-24F

C3100-48TS

C3100-48PS

Interface

  • 10/100/1000
    Base-T ports

    24

    -

    48

    48

  • 1000 Base-X
    Ports

    -

    24

    -

    -

  • 10G Base-R
    Ports

    4

    4

    6

    4

  • External ports

    -

    -

    -

    Max 10G 2

  • Performance

  • Switching capacity

    128 Gbps

    128 Gbps

    216 Gbps

    216 Gbps

  • Forwarding rate

    95 Mpps

    95 Mpps

    160 Mpps

    160 Mpps

  • Max MAC
    address capacity

    16K

    16K

    32K

    32K

  • Active VLAN

    4K

    4K

    4K

    4K

  • Environment

  • Power supply

    Power supply redundancy

    Modular power
    supply redundancy

  • PoE power budget

    -

    -

    -

    MAX 1480W

  • Operating Temperature Humidity

    0 ~ 50°C / 10 ~ 90% [non-condensing]

  • Dimension
    (WxDxH, mm)

    440 x 220 x 44

    440 x 320 x 44

    440 x 320 x 44

    440 x 420 x 44

CoreEdge Product

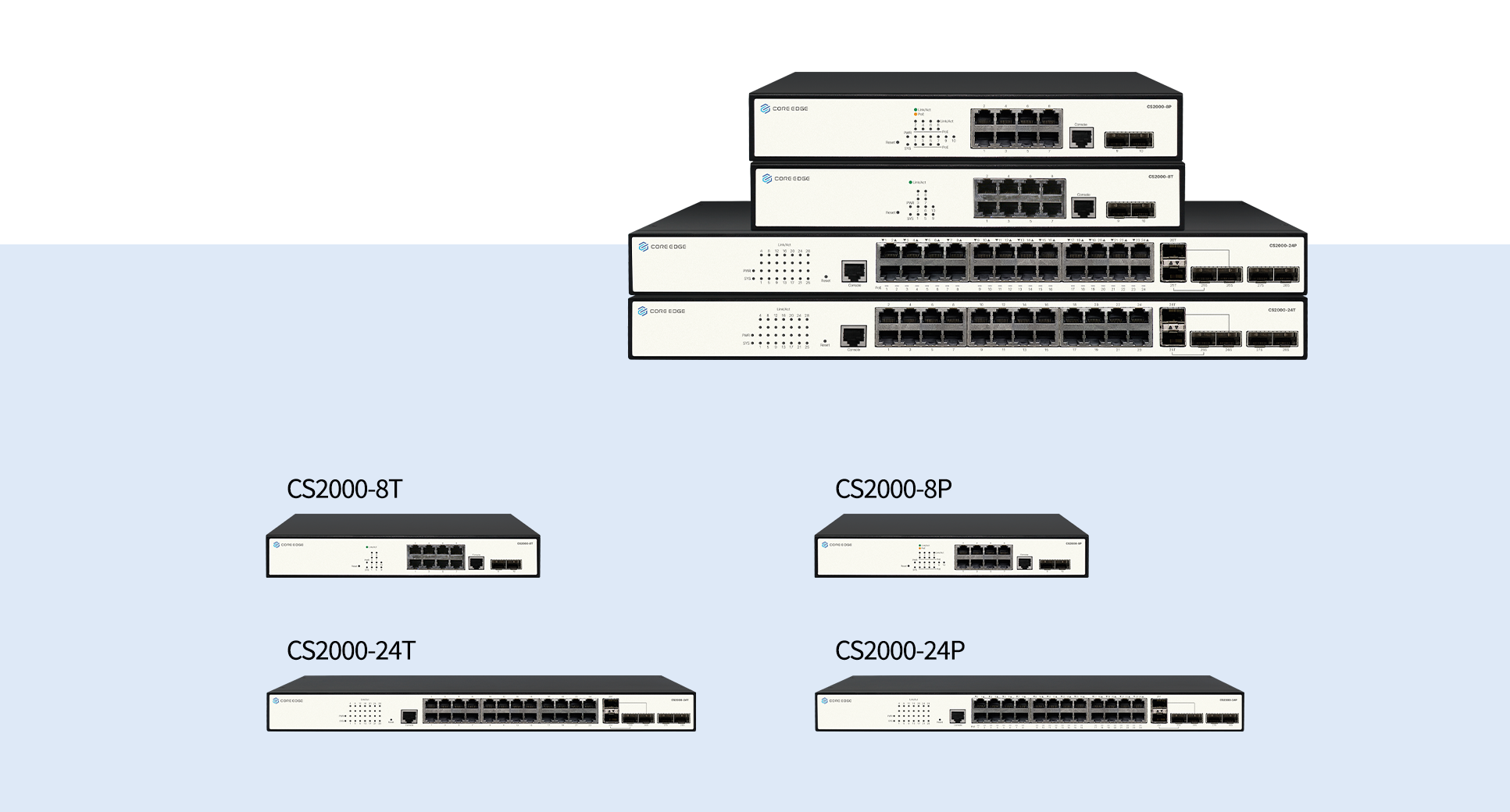

CS2000

CS2000 is designed for middle size of Enterprise environment. IT manager can get an efficiency and various features through CS2000 L2 switch with reasonable and competitive price.

ETHERNET L2 SWITCH

Flexible
configuration

  • Suitable for rack mounting

  • Improve work efficiency through less noise

  • Designed fanless switch (some models)

Suitable for
Enterprise Network

  • Security function such as
    DHCP Snooping, DAI, IPSG

  • Business continuity through
    AutoLooping detection

  • Various mirroring features

  • Sustainable network efficency
    with CS2000 L2 switch

Energy
Efficiency

  • EEE(Energy Efficient Ethernet) technology

  • Designed low power consumption

  • Green IT

Easy
Management

  • Web management

  • CLI management

Model

CS2000-8T

CS2000-8P

CS2000-24T

CS2000-24P

Interface

  • 10/100/1000
    Base-T ports

    8

    8

    24

    24

  • 1000 Base-X
    Ports

    2

    2

    4(2ports combo)

    4(2ports combo)

  • Performance

  • Switching
    Capacity

    20 Gbps

    20 Gbps

    56 Gbps

    56 Gbps

  • Forwarding rate

    14.8 Mpps

    14.8 Mpps

    41.6 Mpps

    41.6 Mpps

  • Environment

  • Power supply

    1 power supply

  • FAN

    Fanless

    Fanless

    Fanless

    FAN

  • PoE budget

    -

    140W

    -

    370W

  • Operating Temperature
    /Humidity

    0°C ~ 45°C / 10 ~ 90% [non-condensing]

  • Dimension
    (WxDxH, mm)

    280 x 180 x 44

    440 x 208 x 44

  • Features

  • L2 Features

    MAC Filtering, Jumbo Frames
    Storm-control (Unicast/Multicast/
    Broadcast)

    STP/RSTP/MSTP, BPDU Guard
    Link-aggregation (Static/LACP)

  • VLAN

    Port/MAC/Subnet based VLAN
    802.1Q VLAN, Voice VLAN

    Private VLAN, Hybrid VLAN
    QinQ

  • Security

    RADIUS/TACACS+
    ACL: L2~L4 based Filtering
    802.1x, DHCP Snooping, Port-security

    Dynamic ARP Inspection
    IP Source Guard
    SNMPv3, SSHv2

  • **PoE
    (PoE models only)

    IEEE 802.3af/at (PoE/PoE+)
    PoE Enable/Disable per port,PoE Status

    Power Management Mode
    Port Prionity

  • Multicast

    IGMP Snooping
    IGMP Filtering

    Fast leave

  • QoS

    8 Queues per port
    802.1p Class of Service / DSCP and Mapping
    Scheduling: SP, WRR, SP+WRR

    Rate-limiting
    Marking and Remarking

  • Management

    CLI, Console, WEB
    Telnet, SNMP v1/v2c, MIB, RMON (1,2,3,9)
    Syslog
    FTP / TFTP

    LLDP
    Port Mirroring
    Looping Prevention
